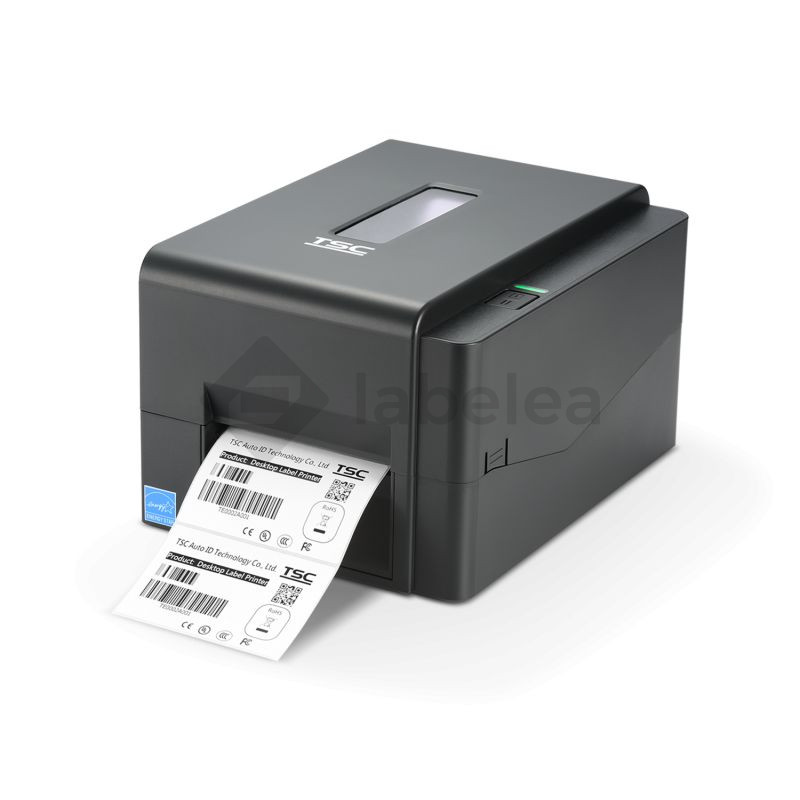

TSC TE310 LABEL PRINTER
A desktop printer that can handle both 25 and 40 mm core media without the need for additional adapters.

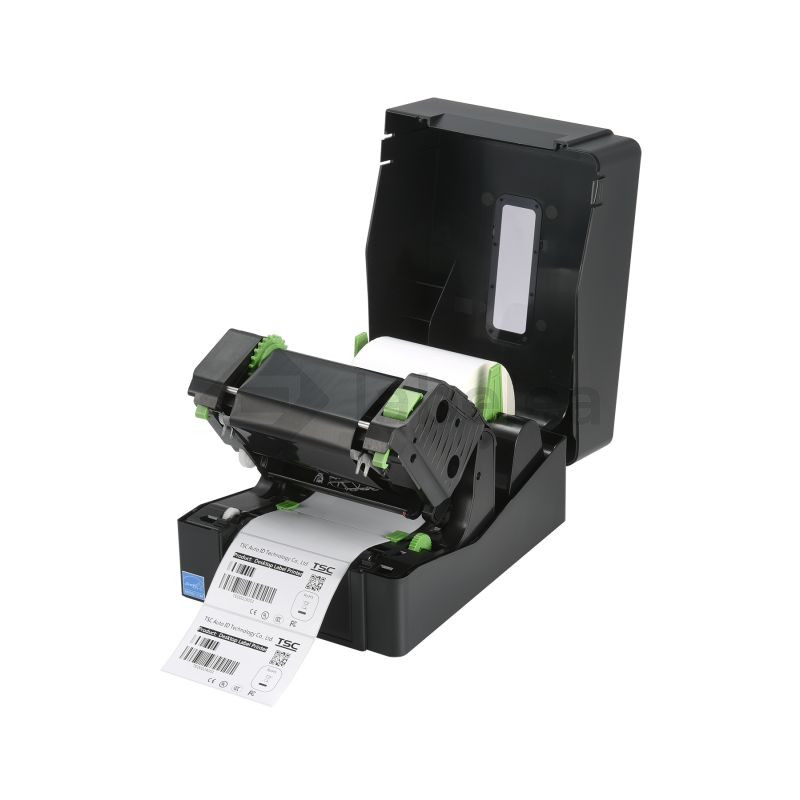

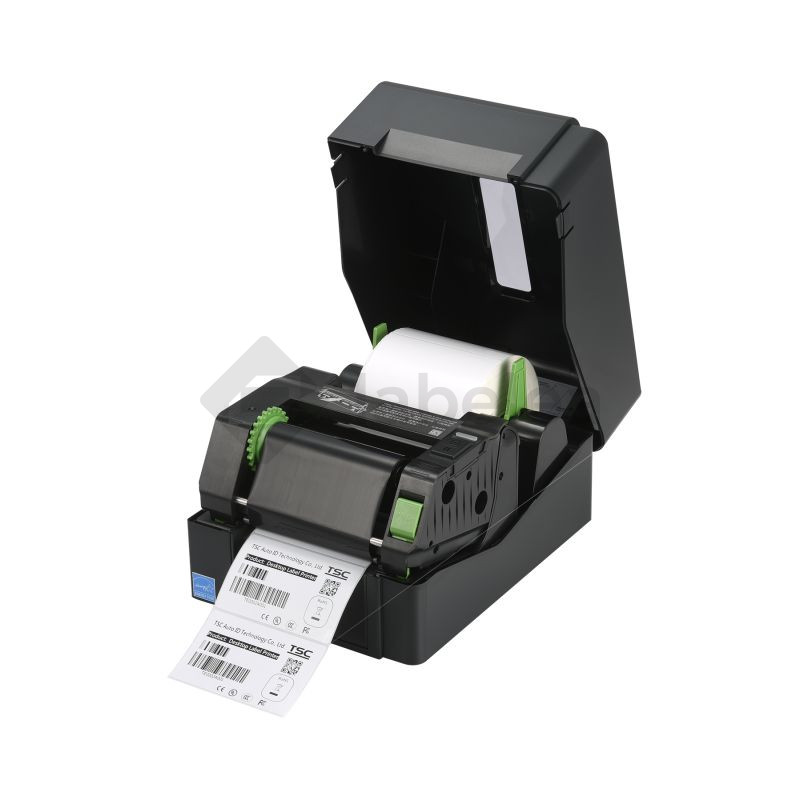

The printer allows the use of both printing technologies – direct thermal printing and thermal transfer printing – in its basic equipment. For thermal transfer printing, ribbons up to 110 m long on 1/2" (12.7 mm) cores and up to 300 m long on 1" (25.4 mm) cores can be used.
Main features:
- Print resolution: 300 dpi (12 dots/mm)
- Maximum print speed: 127 mm/s
- Printing technology: thermal / thermal transfer
- Maximum print width: 108 mm
- Label roll width: 20–112 mm
- Maximum label roll diameter: 127 mm
- Core diameter of label roll: 25 or 40 mm
- Thermal transfer ribbon width: 40 to 110 mm
- Thermal transfer ribbon length: 74 to 110 m or 300 m
- Ribbon colouring layer winding: OUT
- Connection: USB 2.0, Ethernet, RS-232, USB host
- Real Time Clock
NEED HELP WITH THE SELECTION?
Do you have more questions? Contact us at labelea@labelea.eu. We will help you choose the right type.
PACKAGE CONTENTS
Printer, power adapter, USB cable, shaft for labels on 25" core with adapters for 40 mm tube, shaft for thermal transfer ribbon on 1" tube, paper core for winding used ribbon, installation CD (all necessary drivers and applications can also be downloaded).
WARRANTY
We provide a 2-year warranty on the printer, even for businesses. The warranty for the print head is always 25,000 printed metres or 12 months, whichever comes first. The warranty for the drum unit is always 50,000 printed meters or 12 months, whichever comes first.
DIRECT THERMAL PRINT
Thermal labels are printed without the use of additional consumables using the direct thermal printing method. The design on the label is created by heating and darkening the thermal-sensitive layer. Thermal labels are suitable for short-term use as the print legibility deteriorates over time due to external influences.
THERMAL TRANSFER PRINTING
Thermal transfer labels are printed using a thermal transfer ribbon from which the ink is transferred to the label by heating the print head in the printer (thermal transfer). These labels are used wherever longer label durability and higher resistance compared to direct thermal printing are required.
For optimal print results, perfect alignment of the ribbon type and the printed substrate is crucial.
